工作流与智能体模式

本节介绍 LangGraph 中的工作流（Workflow）和智能体（Agent）模式，帮助你理解如何构建可靠的 AI 应用。

概述

在构建 AI 应用时，有两种主要的架构模式：

工作流 vs 智能体

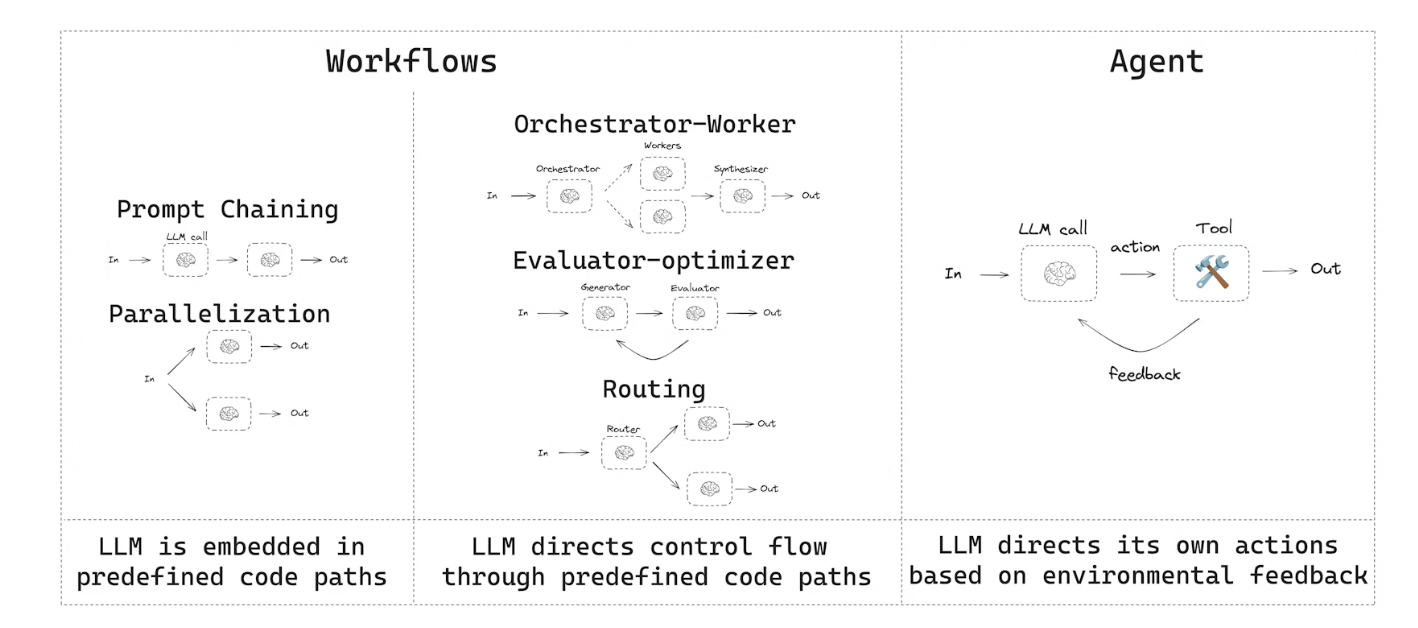

工作流与智能体对比

mermaid

graph LR
    subgraph Workflow
        W1[Input] --> W2[Step 1]
        W2 --> W3[Step 2]
        W3 --> W4[Step 3]
        W4 --> W5[Output]
    end

    subgraph Agent
        A1[Input] --> A2[LLM]
        A2 --> A3{Need Tools?}
        A3 -->|Yes| A4[Call Tool]
        A4 --> A2
        A3 -->|No| A5[Output]
    end

特性	工作流	智能体
执行路径	预定义的代码路径	动态决定执行路径
控制方式	开发者编排	LLM 自主决策
可预测性	高	低
灵活性	低	高
适用场景	结构化任务	开放性任务

为什么使用 LangGraph

LangGraph 提供以下核心优势：

持久化：自动保存状态，支持暂停和恢复
流式输出：实时返回中间结果
调试部署：与 LangSmith 集成，便于调试和生产部署

环境配置

安装依赖

bash

pip install langchain_core langchain-anthropic langgraph

初始化 LLM

python

import os
from langchain_anthropic import ChatAnthropic

# 设置 API Key
os.environ["ANTHROPIC_API_KEY"] = "your-api-key"

# 初始化模型
llm = ChatAnthropic(model="claude-sonnet-4-5-20250929")

LLM 增强技术

在构建工作流之前，了解如何增强 LLM 的能力非常重要。

mermaid

graph TD
    A[LLM] --> B[Tool Calling]
    A --> C[Structured Output]
    A --> D[Short-term Memory]

    B --> B1[Function Call]
    B --> B2[API Integration]

    C --> C1[Pydantic Model]
    C --> C2[JSON Schema]

    D --> D1[Chat History]
    D --> D2[Context Management]

1. 工具调用 (Tool Calling)

让 LLM 能够调用外部函数：

python

from langchain_core.tools import tool

@tool
def multiply(a: int, b: int) -> int:
    """Multiply two numbers"""
    return a * b

# 绑定工具到 LLM
llm_with_tools = llm.bind_tools([multiply])

2. 结构化输出 (Structured Output)

使用 Pydantic 定义输出格式：

python

from pydantic import BaseModel, Field

class JokeOutput(BaseModel):
    """Joke output format"""
    setup: str = Field(description="The setup of the joke")
    punchline: str = Field(description="The punchline of the joke")

# 绑定结构化输出
structured_llm = llm.with_structured_output(JokeOutput)

3. 短期记忆 (Short-term Memory)

维护对话上下文：

python

from langchain_core.messages import HumanMessage, AIMessage

messages = [
    HumanMessage(content="My name is Alice"),
    AIMessage(content="Hello, Alice!"),
    HumanMessage(content="What is my name?")
]

response = llm.invoke(messages)
# LLM will remember and answer "Alice"

工作流模式

1. 提示链 (Prompt Chaining)

将多个 LLM 调用串联起来，每一步的输出作为下一步的输入。

mermaid

graph LR
    A[Input] --> B[LLM 1: Generate]
    B --> C[LLM 2: Translate]
    C --> D[LLM 3: Verify]
    D --> E[Output]

适用场景：

多语言翻译和校对
内容生成后审核
分步骤的复杂推理

代码示例：

python

from langgraph.graph import StateGraph, START, END
from typing import TypedDict

class State(TypedDict):
    topic: str
    joke: str
    improved_joke: str

def generate_joke(state: State) -> State:
    """Generate a joke"""
    msg = llm.invoke(f"Tell a joke about {state['topic']}")
    return {"joke": msg.content}

def improve_joke(state: State) -> State:
    """Improve the joke"""
    msg = llm.invoke(f"Make this joke funnier: {state['joke']}")
    return {"improved_joke": msg.content}

# Build the graph
graph = StateGraph(State)
graph.add_node("generate", generate_joke)
graph.add_node("improve", improve_joke)

graph.add_edge(START, "generate")
graph.add_edge("generate", "improve")
graph.add_edge("improve", END)

chain = graph.compile()
from IPython.display import Image, display
display(Image(react_graph.get_graph(xray=True).draw_mermaid_png()))

result = chain.invoke({"topic": "programmers"})

2. 并行化 (Parallelization)

同时执行多个独立任务，提高效率。

mermaid

graph TD
    A[Input] --> B[Task Dispatcher]
    B --> C1[LLM 1: Task A]
    B --> C2[LLM 2: Task B]
    B --> C3[LLM 3: Task C]
    C1 --> D[Result Aggregator]
    C2 --> D
    C3 --> D
    D --> E[Output]

适用场景：

多维度内容生成
并行评估和审核
批量数据处理

代码示例：

python

from typing import Annotated
import operator

class ParallelState(TypedDict):
    topic: str
    jokes: Annotated[list, operator.add]

def generate_joke_1(state: ParallelState) -> ParallelState:
    """Generate joke 1"""
    msg = llm.invoke(f"Tell a joke about {state['topic']}")
    return {"jokes": [msg.content]}

def generate_joke_2(state: ParallelState) -> ParallelState:
    """Generate joke 2 with irony"""
    msg = llm.invoke(f"Tell an ironic joke about {state['topic']}")
    return {"jokes": [msg.content]}

def generate_joke_3(state: ParallelState) -> ParallelState:
    """Generate a cold joke"""
    msg = llm.invoke(f"Tell a cold joke about {state['topic']}")
    return {"jokes": [msg.content]}

# Build parallel graph
graph = StateGraph(ParallelState)
graph.add_node("joke_1", generate_joke_1)
graph.add_node("joke_2", generate_joke_2)
graph.add_node("joke_3", generate_joke_3)

# Parallel execution
graph.add_edge(START, "joke_1")
graph.add_edge(START, "joke_2")
graph.add_edge(START, "joke_3")

graph.add_edge("joke_1", END)
graph.add_edge("joke_2", END)
graph.add_edge("joke_3", END)

parallel_chain = graph.compile()
from IPython.display import Image, display
display(Image(react_graph.get_graph(xray=True).draw_mermaid_png()))

3. 路由 (Routing)

根据输入内容动态选择执行路径。

mermaid

graph TD
    A[Input] --> B[Classifier]
    B -->|Technical| C[Tech Expert]
    B -->|Sales| D[Sales Expert]
    B -->|General| E[General Assistant]
    C --> F[Output]
    D --> F
    E --> F

适用场景：

客服系统分流
专家系统路由
多模型协作

代码示例：

python

from typing import Literal

class RouteState(TypedDict):
    question: str
    route: str
    answer: str

class RouteDecision(BaseModel):
    """Route decision"""
    route: Literal["technical", "sales", "general"] = Field(
        description="Question type: technical, sales, or general"
    )

def classify_question(state: RouteState) -> RouteState:
    """Classify the question"""
    classifier = llm.with_structured_output(RouteDecision)
    decision = classifier.invoke(f"Classify this question: {state['question']}")
    return {"route": decision.route}

def technical_expert(state: RouteState) -> RouteState:
    """Technical expert answer"""
    msg = llm.invoke(f"As a technical expert, answer: {state['question']}")
    return {"answer": msg.content}

def sales_expert(state: RouteState) -> RouteState:
    """Sales expert answer"""
    msg = llm.invoke(f"As a sales expert, answer: {state['question']}")
    return {"answer": msg.content}

def general_assistant(state: RouteState) -> RouteState:
    """General assistant answer"""
    msg = llm.invoke(f"Answer this question: {state['question']}")
    return {"answer": msg.content}

def route_question(state: RouteState) -> str:
    """Route function"""
    return state["route"]

# Build routing graph
graph = StateGraph(RouteState)
graph.add_node("classify", classify_question)
graph.add_node("technical", technical_expert)
graph.add_node("sales", sales_expert)
graph.add_node("general", general_assistant)

graph.add_edge(START, "classify")
graph.add_conditional_edges(
    "classify",
    route_question,
    {
        "technical": "technical",
        "sales": "sales",
        "general": "general"
    }
)
graph.add_edge("technical", END)
graph.add_edge("sales", END)
graph.add_edge("general", END)

router = graph.compile()
from IPython.display import Image, display
display(Image(react_graph.get_graph(xray=True).draw_mermaid_png()))

4. 协调器-工作者 (Orchestrator-Worker)

主智能体分解任务，分配给多个工作者执行。

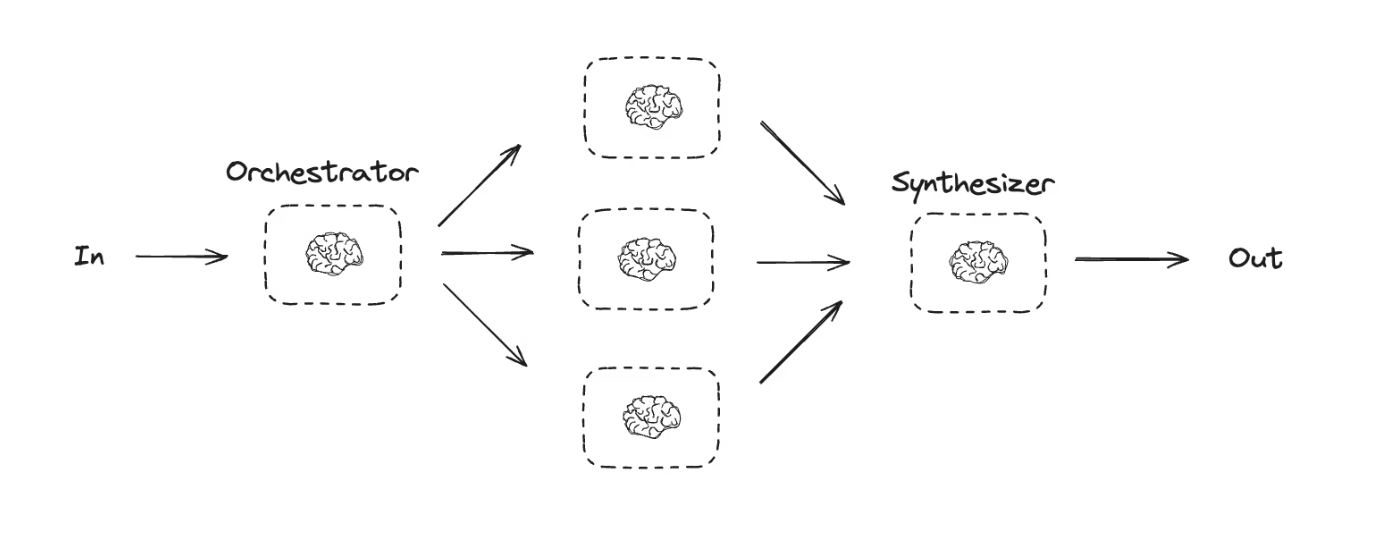

协调器-工作者模式

mermaid

graph TD
    A[Input] --> B[Orchestrator]
    B --> C{Decompose Tasks}
    C --> D1[Worker 1]
    C --> D2[Worker 2]
    C --> D3[Worker N]
    D1 --> E[Merge Results]
    D2 --> E
    D3 --> E
    E --> F[Output]

适用场景：

长文档生成
多文件代码编写
复杂报告生成

代码示例（使用 Send API）：

python

from langgraph.types import Send

class OrchestratorState(TypedDict):
    topic: str
    sections: list[str]
    completed_sections: Annotated[list, operator.add]

class WorkerState(TypedDict):
    section: str
    content: str

def orchestrator(state: OrchestratorState) -> list[Send]:
    """Orchestrator: decompose and dispatch tasks"""
    # Use LLM to plan sections
    sections = ["Introduction", "Core Concepts", "Examples", "Summary"]

    # Dynamically create worker tasks
    return [
        Send("worker", {"section": section})
        for section in sections
    ]

def worker(state: WorkerState) -> dict:
    """Worker: complete assigned task"""
    msg = llm.invoke(f"Write content about '{state['section']}'")
    return {"completed_sections": [{"section": state["section"], "content": msg.content}]}

# Build graph
graph = StateGraph(OrchestratorState)
graph.add_node("orchestrator", orchestrator)
graph.add_node("worker", worker)

graph.add_edge(START, "orchestrator")
graph.add_edge("worker", END)

orchestrator_chain = graph.compile()
from IPython.display import Image, display
display(Image(react_graph.get_graph(xray=True).draw_mermaid_png()))

5. 评估器-优化器 (Evaluator-Optimizer)

循环迭代，直到满足质量标准。

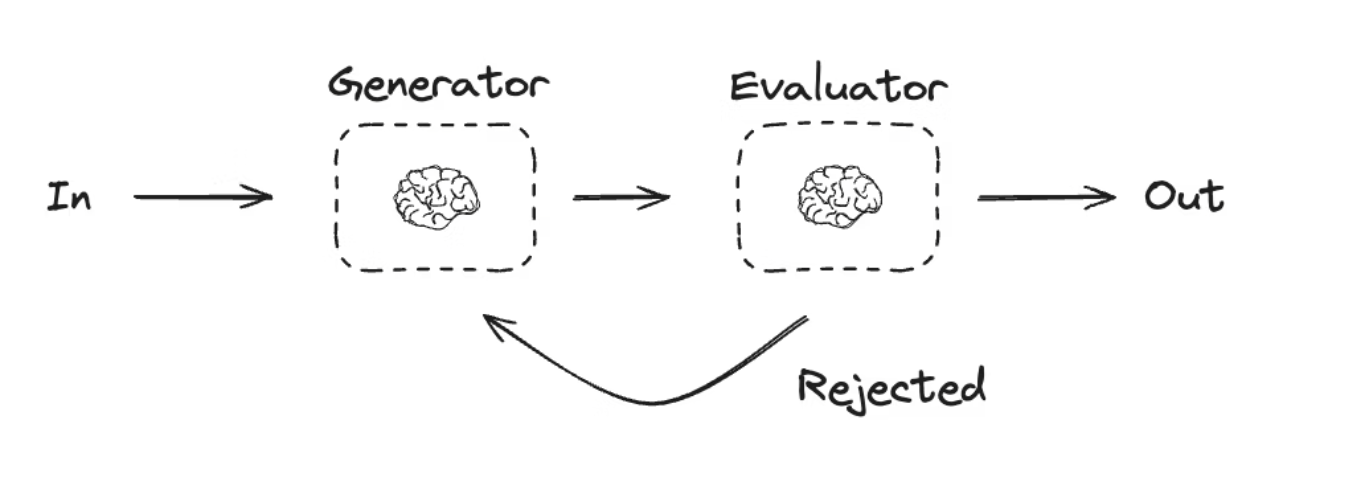

评估器-优化器模式

mermaid

graph TD
    A[Input] --> B[Generator]
    B --> C[Evaluator]
    C --> D{Pass?}
    D -->|No| E[Feedback]
    E --> B
    D -->|Yes| F[Output]

适用场景：

内容质量优化
翻译校对
代码审查和修复

代码示例：

python

class OptimizeState(TypedDict):
    topic: str
    current_joke: str
    feedback: str
    accepted: bool

class Evaluation(BaseModel):
    """Evaluation result"""
    score: int = Field(description="Score from 1-10")
    feedback: str = Field(description="Improvement suggestions")
    accepted: bool = Field(description="Pass if score >= 8")

def generate_joke(state: OptimizeState) -> OptimizeState:
    """Generate or improve joke"""
    if state.get("feedback"):
        prompt = f"Improve the joke based on feedback:\nOriginal: {state['current_joke']}\nFeedback: {state['feedback']}"
    else:
        prompt = f"Tell a joke about {state['topic']}"

    msg = llm.invoke(prompt)
    return {"current_joke": msg.content}

def evaluate_joke(state: OptimizeState) -> OptimizeState:
    """Evaluate the joke"""
    evaluator = llm.with_structured_output(Evaluation)
    result = evaluator.invoke(f"Evaluate this joke: {state['current_joke']}")
    return {
        "feedback": result.feedback,
        "accepted": result.accepted
    }

def should_continue(state: OptimizeState) -> str:
    """Decide whether to continue optimization"""
    return END if state["accepted"] else "generate"

# Build graph
graph = StateGraph(OptimizeState)
graph.add_node("generate", generate_joke)
graph.add_node("evaluate", evaluate_joke)

graph.add_edge(START, "generate")
graph.add_edge("generate", "evaluate")
graph.add_conditional_edges("evaluate", should_continue)

optimizer = graph.compile()

from IPython.display import Image, display
display(Image(react_graph.get_graph(xray=True).draw_mermaid_png()))

智能体模式

智能体是能够自主决策和使用工具的系统。

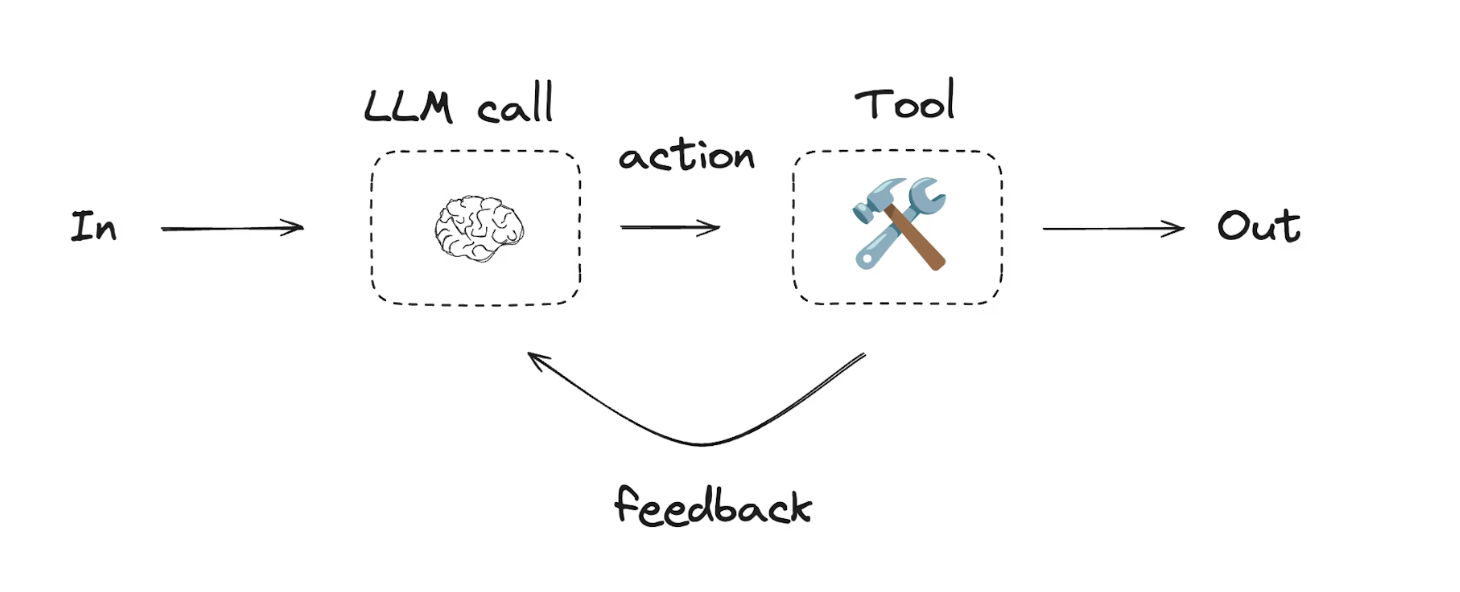

智能体模式

mermaid

graph TD
    A[User Input] --> B[LLM]
    B --> C{Need Tools?}
    C -->|Yes| D[Select Tool]
    D --> E[Execute Tool]
    E --> F[Get Result]
    F --> B
    C -->|No| G[Generate Answer]
    G --> H[Output]

构建智能体

python

from langchain_core.tools import tool
from langchain_core.messages import HumanMessage, SystemMessage
from langgraph.graph import StateGraph, START, END
from langgraph.prebuilt import ToolNode

# Define tools
@tool
def add(a: int, b: int) -> int:
    """Addition"""
    return a + b

@tool
def multiply(a: int, b: int) -> int:
    """Multiplication"""
    return a * b

@tool
def divide(a: int, b: int) -> float:
    """Division"""
    if b == 0:
        return "Error: Cannot divide by zero"
    return a / b

tools = [add, multiply, divide]

# Bind tools
llm_with_tools = llm.bind_tools(tools)

# Define state
class AgentState(TypedDict):
    messages: list

def call_model(state: AgentState) -> AgentState:
    """Call the model"""
    messages = state["messages"]
    response = llm_with_tools.invoke(messages)
    return {"messages": messages + [response]}

def should_continue(state: AgentState) -> str:
    """Check if should continue"""
    last_message = state["messages"][-1]
    if hasattr(last_message, "tool_calls") and last_message.tool_calls:
        return "tools"
    return END

# Build agent graph
graph = StateGraph(AgentState)
graph.add_node("agent", call_model)
graph.add_node("tools", ToolNode(tools))

graph.add_edge(START, "agent")
graph.add_conditional_edges("agent", should_continue, {"tools": "tools", END: END})
graph.add_edge("tools", "agent")

agent = graph.compile()
from IPython.display import Image, display
display(Image(react_graph.get_graph(xray=True).draw_mermaid_png()))


# Use the agent
result = agent.invoke({
    "messages": [
        SystemMessage(content="You are a math assistant"),
        HumanMessage(content="Calculate (3 + 5) * 2")
    ]
})

完整案例代码

以下是一个完整的可运行示例，展示了多种工作流模式：

python

"""
LangGraph Workflow and Agent Patterns - Complete Example
Demonstrates: Prompt Chaining, Parallelization, Routing, Evaluator-Optimizer, Agent
"""

import os
import operator
from typing import TypedDict, Literal, Annotated
from pydantic import BaseModel, Field

# ========== 1. Environment Setup ==========

from langchain_openai import ChatOpenAI

# Set API Key
# os.environ["OPENAI_API_KEY"] = "your-api-key"

# Initialize LLM
llm = ChatOpenAI(model="gpt-4o-mini", temperature=0.7)

# ========== 2. Import LangGraph ==========

from langgraph.graph import StateGraph, START, END
from langchain_core.tools import tool
from langchain_core.messages import HumanMessage, SystemMessage, AIMessage

# ========== 3. Pattern 1: Prompt Chaining ==========

print("=" * 60)
print("Pattern 1: Prompt Chaining")
print("=" * 60)

class ChainState(TypedDict):
    topic: str
    draft: str
    translation: str
    final: str

def generate_draft(state: ChainState) -> ChainState:
    """Step 1: Generate draft"""
    msg = llm.invoke(f"Write a short introduction about '{state['topic']}' in about 50 words")
    print(f"[Generate Draft] {msg.content[:50]}...")
    return {"draft": msg.content}

def translate_content(state: ChainState) -> ChainState:
    """Step 2: Translate to Chinese"""
    msg = llm.invoke(f"Translate to Chinese:\n{state['draft']}")
    print(f"[Translate] {msg.content[:50]}...")
    return {"translation": msg.content}

def polish_content(state: ChainState) -> ChainState:
    """Step 3: Polish content"""
    msg = llm.invoke(f"Polish this Chinese text to be more professional:\n{state['translation']}")
    print(f"[Polish] {msg.content[:50]}...")
    return {"final": msg.content}

# Build prompt chain
chain_graph = StateGraph(ChainState)
chain_graph.add_node("generate", generate_draft)
chain_graph.add_node("translate", translate_content)
chain_graph.add_node("polish", polish_content)

chain_graph.add_edge(START, "generate")
chain_graph.add_edge("generate", "translate")
chain_graph.add_edge("translate", "polish")
chain_graph.add_edge("polish", END)

prompt_chain = chain_graph.compile()

# Run prompt chain
chain_result = prompt_chain.invoke({"topic": "Artificial Intelligence"})
print(f"\nFinal Result:\n{chain_result['final']}\n")

# ========== 4. Pattern 2: Parallelization ==========

print("=" * 60)
print("Pattern 2: Parallelization")
print("=" * 60)

class ParallelState(TypedDict):
    topic: str
    perspectives: Annotated[list, operator.add]

def perspective_optimist(state: ParallelState) -> ParallelState:
    """Optimistic perspective"""
    msg = llm.invoke(f"From an optimistic view, comment on '{state['topic']}' in one sentence")
    print(f"[Optimist] {msg.content}")
    return {"perspectives": [{"view": "Optimist", "content": msg.content}]}

def perspective_pessimist(state: ParallelState) -> ParallelState:
    """Pessimistic perspective"""
    msg = llm.invoke(f"From a pessimistic view, comment on '{state['topic']}' in one sentence")
    print(f"[Pessimist] {msg.content}")
    return {"perspectives": [{"view": "Pessimist", "content": msg.content}]}

def perspective_neutral(state: ParallelState) -> ParallelState:
    """Neutral perspective"""
    msg = llm.invoke(f"From a neutral view, comment on '{state['topic']}' in one sentence")
    print(f"[Neutral] {msg.content}")
    return {"perspectives": [{"view": "Neutral", "content": msg.content}]}

# Build parallel graph
parallel_graph = StateGraph(ParallelState)
parallel_graph.add_node("optimist", perspective_optimist)
parallel_graph.add_node("pessimist", perspective_pessimist)
parallel_graph.add_node("neutral", perspective_neutral)

# Parallel branches
parallel_graph.add_edge(START, "optimist")
parallel_graph.add_edge(START, "pessimist")
parallel_graph.add_edge(START, "neutral")

parallel_graph.add_edge("optimist", END)
parallel_graph.add_edge("pessimist", END)
parallel_graph.add_edge("neutral", END)

parallel_chain = parallel_graph.compile()

# Run parallelization
parallel_result = parallel_chain.invoke({"topic": "Remote Work"})
print(f"\nCollected {len(parallel_result['perspectives'])} perspectives\n")

# ========== 5. Pattern 3: Routing ==========

print("=" * 60)
print("Pattern 3: Routing")
print("=" * 60)

class RouteState(TypedDict):
    question: str
    category: str
    answer: str

class CategoryDecision(BaseModel):
    """Category decision"""
    category: Literal["code", "math", "general"] = Field(
        description="Question type: code, math, or general"
    )

def classify(state: RouteState) -> RouteState:
    """Classify question"""
    classifier = llm.with_structured_output(CategoryDecision)
    result = classifier.invoke(f"Classify this question: {state['question']}")
    print(f"[Classify] Category: {result.category}")
    return {"category": result.category}

def code_expert(state: RouteState) -> RouteState:
    """Code expert"""
    msg = llm.invoke(f"As a coding expert, answer: {state['question']}")
    return {"answer": f"[Code Expert] {msg.content}"}

def math_expert(state: RouteState) -> RouteState:
    """Math expert"""
    msg = llm.invoke(f"As a math expert, answer: {state['question']}")
    return {"answer": f"[Math Expert] {msg.content}"}

def general_assistant(state: RouteState) -> RouteState:
    """General assistant"""
    msg = llm.invoke(f"Answer: {state['question']}")
    return {"answer": f"[General] {msg.content}"}

def route_by_category(state: RouteState) -> str:
    """Route function"""
    return state["category"]

# Build routing graph
route_graph = StateGraph(RouteState)
route_graph.add_node("classify", classify)
route_graph.add_node("code", code_expert)
route_graph.add_node("math", math_expert)
route_graph.add_node("general", general_assistant)

route_graph.add_edge(START, "classify")
route_graph.add_conditional_edges(
    "classify",
    route_by_category,
    {"code": "code", "math": "math", "general": "general"}
)
route_graph.add_edge("code", END)
route_graph.add_edge("math", END)
route_graph.add_edge("general", END)

router = route_graph.compile()

# Test routing
test_questions = [
    "How to read a file in Python?",
    "Solve equation 2x + 5 = 15",
    "What's the weather like today?"
]

for q in test_questions:
    result = router.invoke({"question": q})
    print(f"\nQuestion: {q}")
    print(f"Answer: {result['answer'][:100]}...")

# ========== 6. Pattern 4: Evaluator-Optimizer ==========

print("\n" + "=" * 60)
print("Pattern 4: Evaluator-Optimizer")
print("=" * 60)

class OptState(TypedDict):
    topic: str
    current_content: str
    feedback: str
    score: int
    iteration: int

class EvalResult(BaseModel):
    """Evaluation result"""
    score: int = Field(description="Score from 1-10")
    feedback: str = Field(description="Improvement suggestions")

def generate_content(state: OptState) -> OptState:
    """Generate content"""
    iteration = state.get("iteration", 0) + 1

    if state.get("feedback"):
        prompt = f"Improve based on feedback:\nOriginal: {state['current_content']}\nFeedback: {state['feedback']}"
    else:
        prompt = f"Write a catchy slogan about '{state['topic']}'"

    msg = llm.invoke(prompt)
    print(f"[Iteration {iteration}] Generated: {msg.content}")
    return {"current_content": msg.content, "iteration": iteration}

def evaluate_content(state: OptState) -> OptState:
    """Evaluate content"""
    evaluator = llm.with_structured_output(EvalResult)
    result = evaluator.invoke(f"Evaluate this slogan (creativity, brevity, impact): {state['current_content']}")
    print(f"[Evaluate] Score: {result.score}/10, Feedback: {result.feedback}")
    return {"score": result.score, "feedback": result.feedback}

def should_optimize(state: OptState) -> str:
    """Decide whether to continue"""
    if state["score"] >= 8 or state.get("iteration", 0) >= 3:
        return END
    return "generate"

# Build evaluator-optimizer graph
opt_graph = StateGraph(OptState)
opt_graph.add_node("generate", generate_content)
opt_graph.add_node("evaluate", evaluate_content)

opt_graph.add_edge(START, "generate")
opt_graph.add_edge("generate", "evaluate")
opt_graph.add_conditional_edges("evaluate", should_optimize)

optimizer = opt_graph.compile()

# Run evaluator-optimizer
opt_result = optimizer.invoke({"topic": "Environmental Protection"})
print(f"\nFinal Slogan: {opt_result['current_content']}")
print(f"Final Score: {opt_result['score']}/10")

# ========== 7. Pattern 5: Agent ==========

print("\n" + "=" * 60)
print("Pattern 5: Agent")
print("=" * 60)

from langgraph.prebuilt import ToolNode

# Define tools
@tool
def calculator_add(a: float, b: float) -> float:
    """Calculator: compute a + b"""
    return a + b

@tool
def calculator_multiply(a: float, b: float) -> float:
    """Calculator: compute a * b"""
    return a * b

@tool
def calculator_divide(a: float, b: float) -> str:
    """Calculator: compute a / b"""
    if b == 0:
        return "Error: Cannot divide by zero"
    return str(a / b)

@tool
def get_current_time() -> str:
    """Get current time"""
    from datetime import datetime
    return datetime.now().strftime("%Y-%m-%d %H:%M:%S")

tools = [calculator_add, calculator_multiply, calculator_divide, get_current_time]

# Bind tools to LLM
agent_llm = llm.bind_tools(tools)

# Define agent state
class AgentState(TypedDict):
    messages: list

def call_agent(state: AgentState) -> AgentState:
    """Call agent"""
    response = agent_llm.invoke(state["messages"])
    return {"messages": state["messages"] + [response]}

def should_use_tools(state: AgentState) -> str:
    """Check if need to use tools"""
    last_message = state["messages"][-1]
    if hasattr(last_message, "tool_calls") and last_message.tool_calls:
        print(f"[Tool Call] {[tc['name'] for tc in last_message.tool_calls]}")
        return "tools"
    return END

# Build agent graph
agent_graph = StateGraph(AgentState)
agent_graph.add_node("agent", call_agent)
agent_graph.add_node("tools", ToolNode(tools))

agent_graph.add_edge(START, "agent")
agent_graph.add_conditional_edges("agent", should_use_tools, {"tools": "tools", END: END})
agent_graph.add_edge("tools", "agent")

agent = agent_graph.compile()

# Test agent
print("\nTest 1: Math calculation")
result1 = agent.invoke({
    "messages": [
        SystemMessage(content="You are a helpful assistant with calculator tools"),
        HumanMessage(content="Calculate (15 + 25) * 3")
    ]
})
print(f"Answer: {result1['messages'][-1].content}\n")

print("Test 2: Get time")
result2 = agent.invoke({
    "messages": [
        SystemMessage(content="You are a helpful assistant"),
        HumanMessage(content="What time is it now?")
    ]
})
print(f"Answer: {result2['messages'][-1].content}\n")

# ========== 8. Summary ==========

print("=" * 60)
print("Summary")
print("=" * 60)

print("""
LangGraph Workflow Patterns Summary:

| Pattern | Use Case | Characteristics |
|---------|----------|-----------------|
| Prompt Chain | Multi-step processing | Sequential, context passing |
| Parallelization | Independent subtasks | Concurrent, result aggregation |
| Routing | Classification | Conditional branching, expert system |
| Evaluator-Optimizer | Quality iteration | Loop until criteria met |
| Agent | Autonomous decisions | Dynamic tool calling |

Recommendations:
- Deterministic tasks -> Workflows (Chain, Parallel, Route)
- Open-ended tasks -> Agent
- High quality requirements -> Evaluator-Optimizer loop
""")

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362

运行结果示例

============================================================
Pattern 1: Prompt Chaining
============================================================
[Generate Draft] Artificial Intelligence is a branch...
[Translate] 人工智能是计算机科学的一个分支...
[Polish] 人工智能作为计算机科学的核心领域...

============================================================
Pattern 2: Parallelization
============================================================
[Optimist] Remote work offers unprecedented flexibility...
[Pessimist] Remote work may lead to collaboration challenges...
[Neutral] Remote work is a transformation in how we work...

============================================================
Pattern 3: Routing
============================================================
[Classify] Category: code
Question: How to read a file in Python?
Answer: [Code Expert] Use the open() function...

============================================================
Pattern 4: Evaluator-Optimizer
============================================================
[Iteration 1] Generated: Protect Earth, Start Today
[Evaluate] Score: 6/10, Feedback: Could be more impactful
[Iteration 2] Generated: Green Action, Blue Sky Tomorrow
[Evaluate] Score: 8/10, Feedback: Catchy and memorable

============================================================
Pattern 5: Agent
============================================================
[Tool Call] ['calculator_add', 'calculator_multiply']
Answer: (15 + 25) * 3 = 120

参考资源

总结： 工作流适合结构化、可预测的任务，智能体适合开放性、需要自主决策的任务。根据实际需求选择合适的模式，或将多种模式组合使用。

工作流与智能体模式 ​

概述 ​

工作流 vs 智能体 ​

为什么使用 LangGraph ​

环境配置 ​

安装依赖 ​

初始化 LLM ​

LLM 增强技术 ​

1. 工具调用 (Tool Calling) ​

2. 结构化输出 (Structured Output) ​

3. 短期记忆 (Short-term Memory) ​

工作流模式 ​

1. 提示链 (Prompt Chaining) ​

2. 并行化 (Parallelization) ​

3. 路由 (Routing) ​

4. 协调器-工作者 (Orchestrator-Worker) ​

5. 评估器-优化器 (Evaluator-Optimizer) ​

智能体模式 ​

构建智能体 ​

完整案例代码 ​

运行结果示例 ​

参考资源 ​

工作流与智能体模式

概述

工作流 vs 智能体

为什么使用 LangGraph

环境配置

安装依赖

初始化 LLM

LLM 增强技术

1. 工具调用 (Tool Calling)

2. 结构化输出 (Structured Output)

3. 短期记忆 (Short-term Memory)

工作流模式

1. 提示链 (Prompt Chaining)

2. 并行化 (Parallelization)

3. 路由 (Routing)

4. 协调器-工作者 (Orchestrator-Worker)

5. 评估器-优化器 (Evaluator-Optimizer)

智能体模式

构建智能体

完整案例代码

运行结果示例

参考资源
